Solitary Fibrous Tumor in the Buccal Space: MR Findings with Pathologic Correlation

Solitary fibrous tumor is a rare spindle-cell tumor that typically appears as a pleura-based mass despite the recent increasing recognition of its extrapleural location. In the English-language medical literature, only a few cases of solitary fibrous tumor of the buccal space have been described, and they have poor descriptions of the radiologic findings (1–3). We describe the MR findings correlated with pathologic findings of this rare tumor involving the buccal space.

Case Report

A 46-year-old man presented with a 1-mo history of a painless mass in the right cheek. The mass was hard and movable. He denied a history of trauma or surgery to the cheek and had no masticatory problem. A protruding mass was evident behind the parotid duct opening at the right buccal mucosa.

MR imaging at 1.5-T revealed a well-circumscribed solid mass measuring 2 × 2.3 × 2.7 cm in the right posterior buccal space, with anterior displacement of the parotid duct (Fig 1A). The mass abutted and compressed the anterior portion of the right masseter muscle; however, it was separated from the mandible and maxilla (Fig 1A–D). The mass showed homogeneous signal isointensity relative to that of muscle on T1-weighted images (Fig 1A), and mainly signal hyperintensity with isointensity in the medial peripheral portion on T2-weighted images (Fig 1B). The mass showed homogeneously strong enhancement; the less enhancing portion was the medial peripheral portion on contrast-enhanced fat-suppressed T1-weighted images (Fig 1C and D). CT was not performed, because additional information was not expected in this tumor.

• Download figure
• Open in new tab
• Download powerpoint

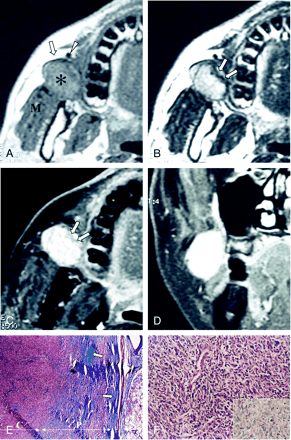

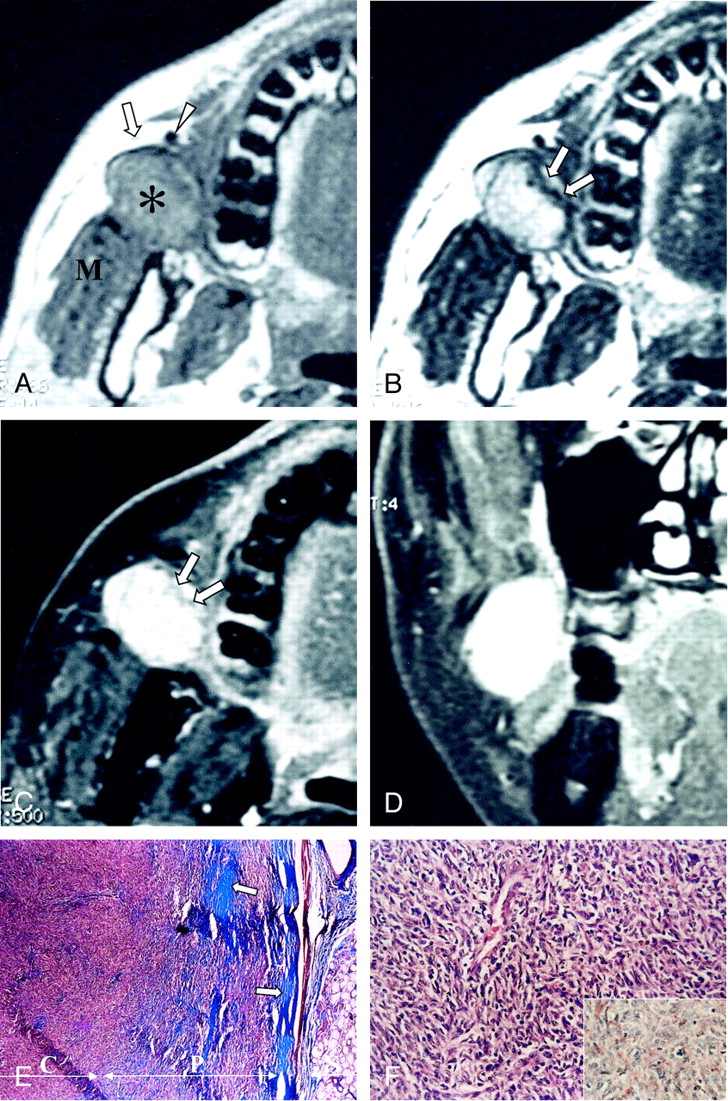

fig 1.

Images in a 46-year-old man with a painless right cheek mass.

A, Axial T1-weighed MR image (466/14 [TR/TE]) shows a well-marginated mass (asterisk) that is isointense to the muscle in the right posterior buccal space. The mass displaces the parotid duct (arrow) and the facial vein (arrowhead) anteriorly and compresses the masseter muscle (M) posteriorly.

B, Axial T2-weighted MR image (4016/104) shows that the mass has mainly high signal intensity, with linear signal isointensity in the medial peripheral portion (arrows).

C and D, Axial (C) and coronal (D) contrast-enhanced T1-weighted MR images (500/14) reveal homogeneously strong enhancement of the mass, with the less enhanced portion in the medial peripheral portion (arrows in C); this portion corresponds to the hypocellular collagenous sclerotic area found at pathologic correlation.

E, Low-power photomicrograph shows a well-circumscribed mass adjacent to a minor salivary gland in the buccal wall. The peripheral portion (P) is hypocellular but more collagenous (blue, arrows) compared with the central portion (C); this finding correlates with the difference in signal intensity between the central and peripheral portions on the T2-weighted and contrast-enhanced T1-weighted images (Masson-trichrome, magnification × 40).

F, Photomicrograph shows that the tumor is composed of mostly a hypercellular proliferation of spindle cells arranged haphazardly in a collagenous background. The spindle cells show elongated bland nuclei surrounded by a rim of amphophilic cytoplasm (hematoxylin-eosin, magnification × 200). The inset shows that the tumor cells and capillary endothelial cells have immunohistochemically positive CD-34 results; this finding is consistent with that of a solitary fibrous tumor (avidin-biotin conjugation, magnification × 200).

Excision of the mass was performed by means of an intraoral approach. A 2 × 3 cm, well-circumscribed, unencapsulated, ovoid mass was removed without much difficulty. The mass was whitish, rubbery, and firm. Microscopically, the lesion was composed of spindle-shaped cells with a patternless arrangement in a collagenous matrix. Numerous blood vessels and dilated vascular spaces were present, with an occasional hemangiopericytoma-like pattern (Fig 1E and F). Immunohistochemical studies showed positive staining of the tumor cells for vimentin, but no staining for cytokeratin, S-100 protein, desmin, or actin. In addition, the tumor showed strong CD34 immunoreactivity (Fig 1F), which is a specific marker for solitary fibrous tumor and noted for its absence in other epithelial tumors. Therefore, the diagnosis was a solitary fibrous tumor.

Discussion

The histogenesis of solitary fibrous tumor has been controversial, but findings of a recent immunohistochemical and ultrastructural analysis has strongly suggested an origin of submesothelial mesenchymal fibroblast-like cells, rather than epithelial or mesothelial tissue (4). The ideas of this mesenchymal, rather than mesothelial, origin was further supported by the occurrence of this tumor in extrapleural sites (such as the peritoneum, pericardium, lung, liver, meninges, spinal epidural and/or intradural space, sublingual gland, mediastinum, thyroid, and orbit) and in the upper respiratory tract (including the nasal fossa, nasopharynx, paranasal sinuses, and parapharyngeal space), some of which are devoid of mesothelium (4).

The reported CT findings of solitary fibrous tumors were those of a well-defined soft-tissue mass with heterogeneously or homogeneously strong enhancement (1, 4–6) and occasional calcification or necrosis (4, 5).

On MR images, solitary fibrous tumors were mostly isointense to the muscle on T1-weighted images and hypointense on T2-weighted images, and they showed heterogeneous or homogeneous enhancement (1, 4, 6–8). In this case, the hyperintensity on T2-weighted images was rather unusual compared with the hypointensity usually reported. At pathologic correlation, this portion corresponded well to the hypocellular but more collagenous sclerotic area.

The radiologic differential diagnosis for a neoplasm in the buccal space includes tumors of minor salivary gland origin (benign tumors, such as pleomorphic adenoma, are most common), soft-tissue sarcoma, and lymphadenopathy. Other less common tumors in the buccal space include lipoma, lymphoma, nerve sheath tumor, and hemangioma. Most lesions have attenuation and signal intensity similar to that of muscle on CT and T1-weighted images, respectively; on T2-weighted images, the lesions have signal intensity greater than that of muscle. Additionally, on both enhanced CT and contrast-enhanced T1-weighted images, most lesions enhance moderately or strongly, usually in a homogeneous fashion. Therefore, most buccal space masses have a nonspecific imaging appearance (although lymphadenopathy and some minor salivary gland tumors occasionally have rim enhancement), hemangiomas occasionally have characteristic phleboliths, and lipomas have typical fat attenuation or signal intensity (9, 10). Therefore, to establish a histologic diagnosis, biopsy is mandatory in most cases.

Pathologically, solitary fibrous tumors must be differentiated from other benign soft-tissue tumors, such as neurogenic tumor, fibroblastic tumor, or hemangiopericytoma (1). However, CD34, a transmembrane glycoprotein expressed by hematopoietic progenitor cells, endothelium, and certain populations of mesenchymal stromal cells in the dermis, has been proposed as the most sensitive marker for solitary fibrous tumors (11). When used in conjunction with histopathologic findings and immunohistologic studies, CD34 is useful for discriminating solitary fibrous tumor from other tumors (5).

Most cases of solitary fibrous tumor, especially those at extrapleural sites, are benign and cured with complete surgical excision. Malignant solitary fibrous tumors with an invasive growth pattern, cellular pleomorphism, and abundant mitotic activity frequently recur and may metastasize (12). In malignant solitary fibrous tumors, the resectability seems to be the most important prognostic factor. Some authors (13) have reported good results with radiation therapy or chemotherapy for incompletely resected tumors.
